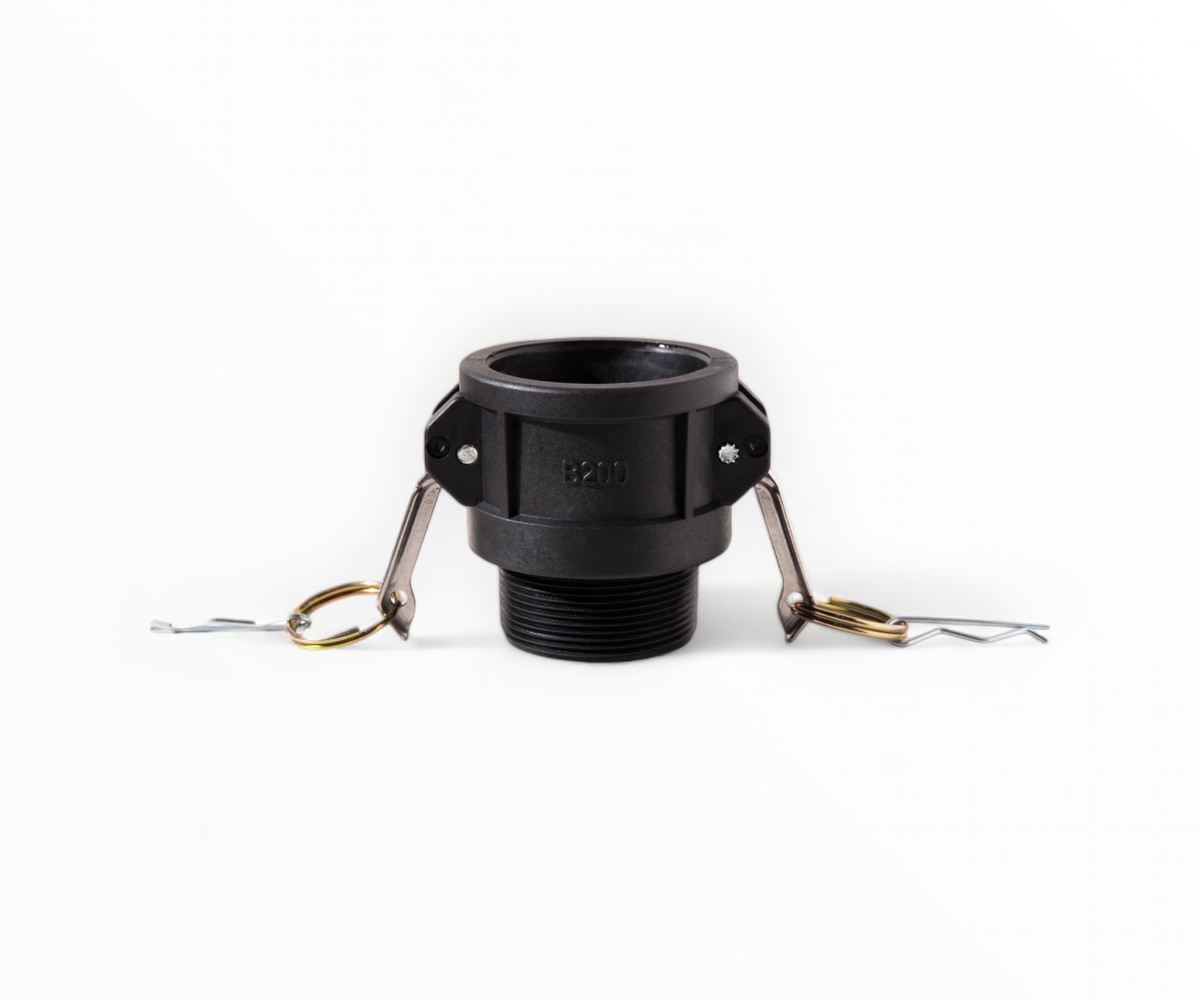

B-Type PP Camlock Couplings

B-Type PP Camlock Couplings

B-Type PP Camlock Couplings are innovative quick connectors designed for optimum fluid management. Manufactured from robust polypropylene, these couplings offer superior chemical resistance and ease of use, making them the first choice for a wide range of industrial applications, particularly in the chemical and agricultural sectors.

Descritption:

B-Type PP Camlock Couplings are critical elements in fluid handling systems, embodying the perfect synthesis of durability and efficiency. These couplings feature a male adapter design with innovative cam arms, ensuring a secure and hermetic connection. Manufactured from high quality polypropylene, they offer unrivalled chemical resistance and corrosion resistance, making them suitable for a wide range of applications, from agricultural irrigation systems to the petrochemical industry. Their impressive pressure handling capacity and thermal stability ensure reliable performance even under the most demanding operating conditions. For those seeking high quality camlock couplings, Vortex offers these tailored solutions, emphasising both superior quality and adaptability.

Dimension:

Inch ΦA ΦB L1
1/2 34.6 25.1 53
3/4*1/2 41.5 32.5 54.7
3/4 41.5 32.5 54.7
1 49 37.3 61
1-1/4 58.4 46 65.5
1-1/2 67 54 73
2 82 64 84
2-1/2 94.5 76.5 85.5
3 110 92.3 90
4 144 120 95

Structural Drawing:

B-Type PP Camlock Couplings Drawing
A-type Camlock Coupling Drawing

Function:

  • Swift and reliable fluid connections across multiple industries
  • Streamlined transfer of both liquids and gases
  • Facilitated assembly and disassembly of fluid systems
  • Dependable containment for sensitive or valuable substances
  • Adaptable for both short-term and long-term installations

Features:

  • High-performance polypropylene composition
  • Superior resistance to chemicals and corrosion
  • Intuitive cam arm locking system
  • Ergonomic, lightweight construction
  • Broad temperature operating range
  • Hermetic seal for secure fluid transfer
  • Interoperability with diverse camlock coupling systems
  • Bespoke configuration options

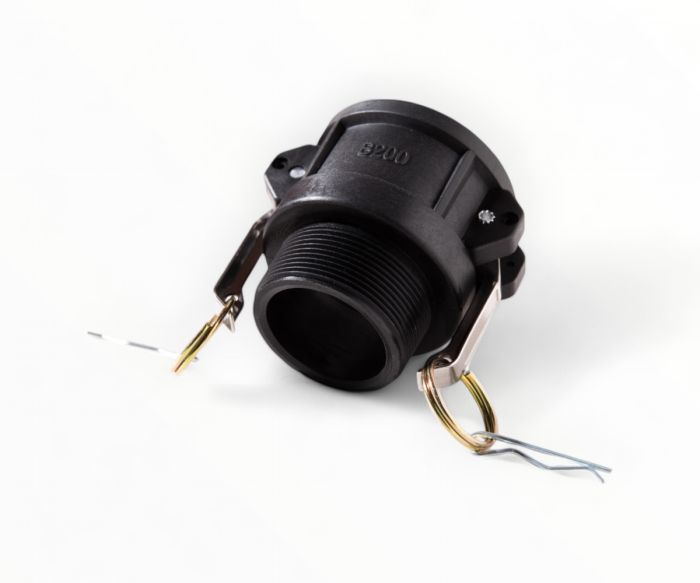

Detail Picture Show

Brand

Vortextank

Grade

PP & Nylon

Temperture

-30°C to 110°C

Color

Black

Dimension

From 1/2'' to 4''

Type

B-Type Camlock Coupling
